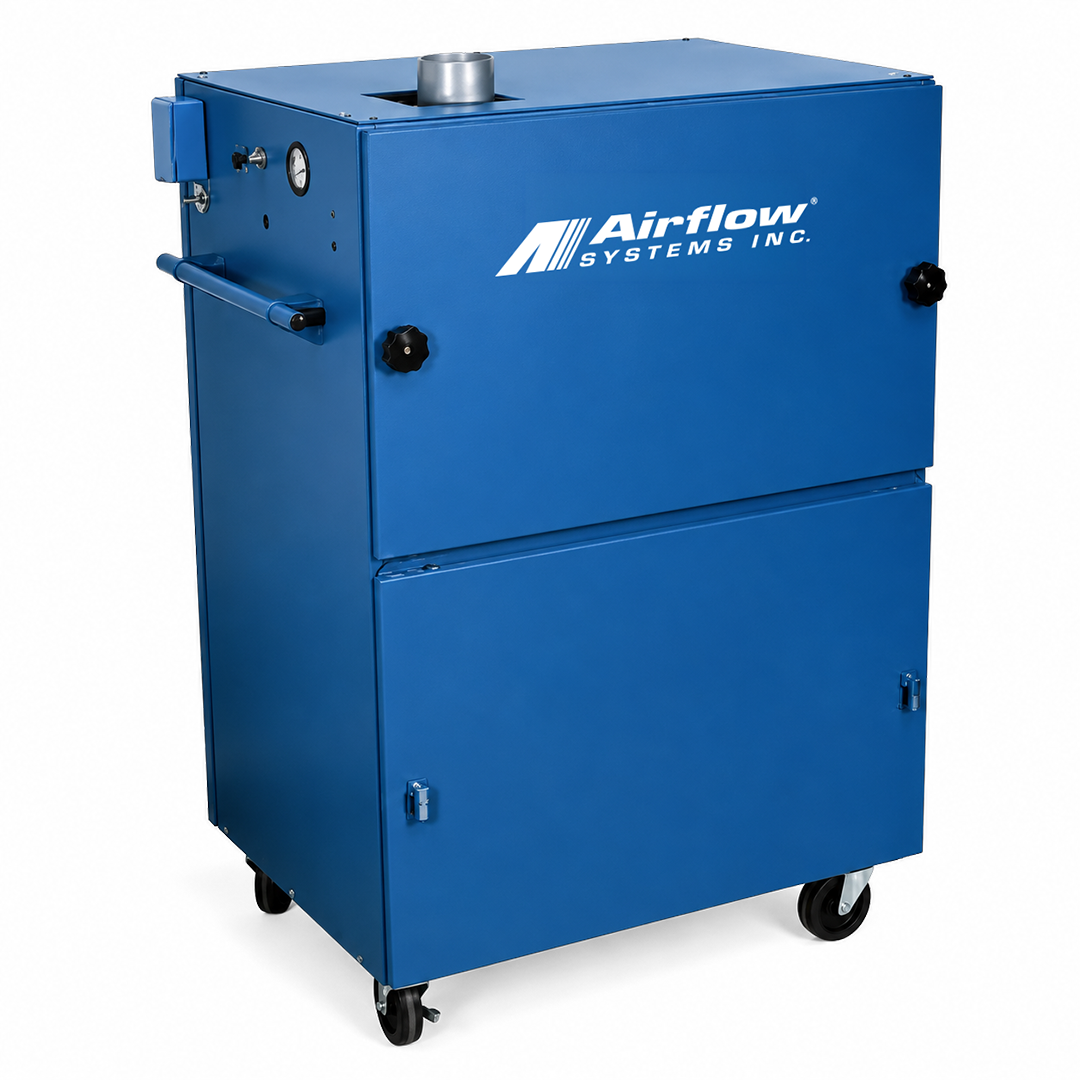

V2 Source Capture Fume Collector
The Airflow Systems V2 high vacuum dust collector is a compact, durable steel unit designed for efficient industrial dust removal with over 99% collection efficiency for OSHA compliance. It is available in 2.5 HP and 3.5 HP models, delivering up to 210 CFM, and operates quietly at 72–75 dBA. Key features include a continuous-duty blower for reliability, nonelectrostatic operation, a Vibra-Pulse® filter cleaning system that outperforms reverse pulse designs, and a simple push-button backflush for quick maintenance and reduced downtime.
Features & Benefits
-
Continuous-duty Blower: Provides longer life and greater reliability.
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Over 99% Efficient Collection: Simplifies OSHA and insurance compliance.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
-
Easy Filter Backflush: Push-button operation eliminates cleanup hassle and reduces downtime.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Silencers: Reduces air flow noise for quieter operation.
-
Adsorber Module: To control gases and odors.
-
HEPA High Efficiency After-Filter: Provides 99.97% filtration efficiency.
-
Oversized Wheels: Ideal for rolling over rough surfaces, provides additional stability.
-
Hopper with Floor Stand: For 5-gallon pail.
-
Regulator
Specifications
-
Construction: 12/14/16 ga. steel cabinet, powder coated
-
Blower Pkgs (HP): 2.5, 3.5
-
Noise Level (dBA): 72/75
-
Electrical: 2.5 HP - 208/230/460/3/60, 6.9/3.45; 3.5 HP - 208/230/460/3//60, 11.8/10.7/5.4
-
Nominal Air Flow (CFM): 145, 2.5hp ; 210, 3.5hp
Dimensions
-
Width: 28”
-
Height: 44.50”
-
Depth: 21.75”
