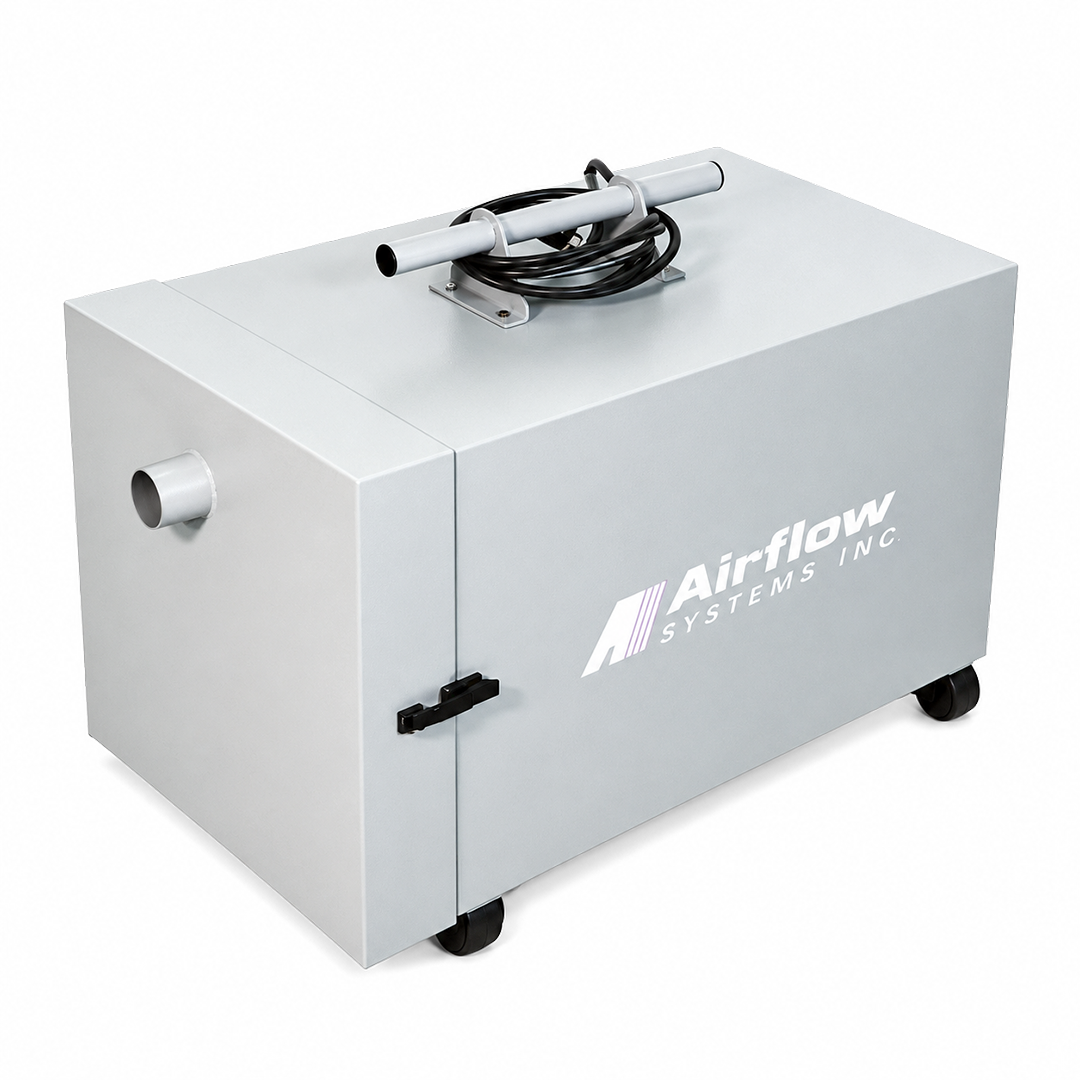

V1
The Airflow Systems V1 high vacuum dust collector is a compact, durable unit built from 18 gauge powder-coated steel for reliable industrial dust removal. It offers dual brush motor or single continuous-duty motor configurations, delivering up to 200 CFM (standard) while operating at 74 dBA. With over 99% collection efficiency, it supports OSHA compliance and low-maintenance operation through its nonelectrostatic design. Its small footprint makes it ideal for tight spaces without sacrificing performance or reliability.
Features & Benefits
-
Dual Blower: 2 brush type motors designed for intermittent duty.
-
Non-electrostatic operation: High reliability, low maintenance.
-
Over 99% efficient collection: Simplifies OSHA and insurance compliance.
Options
-
Continuous-duty blower: Provides longer life and greater reliability.
-
HEPA High Efficiency After-Filter: Provides 99.97% filtration efficiency.
-
115V Electrical: Plugs into any standard outlet.
-
Cyclone Prefilter
-
Portable Package: Includes big wheel kit, two-piece wand, and floor sweep tool.
Specifications
-
Construction: 14/12 ga. steel cabinet, powder coated
-
Blower Pkgs: Dual Brush Motors; Single continuous duty motor
-
Noise Level (dBA): 74
-
Electrical: Dual - 115V, 15.8 total amps, std.; Single - 115V, 15.6 amps, opt.
-
Nominal Air Flow (CFM): 200 Std. ; 107, Continuous Duty
Dimensions
-
Width: 16.00”
-
Height: 16.00”
-
Length: 30.00”
