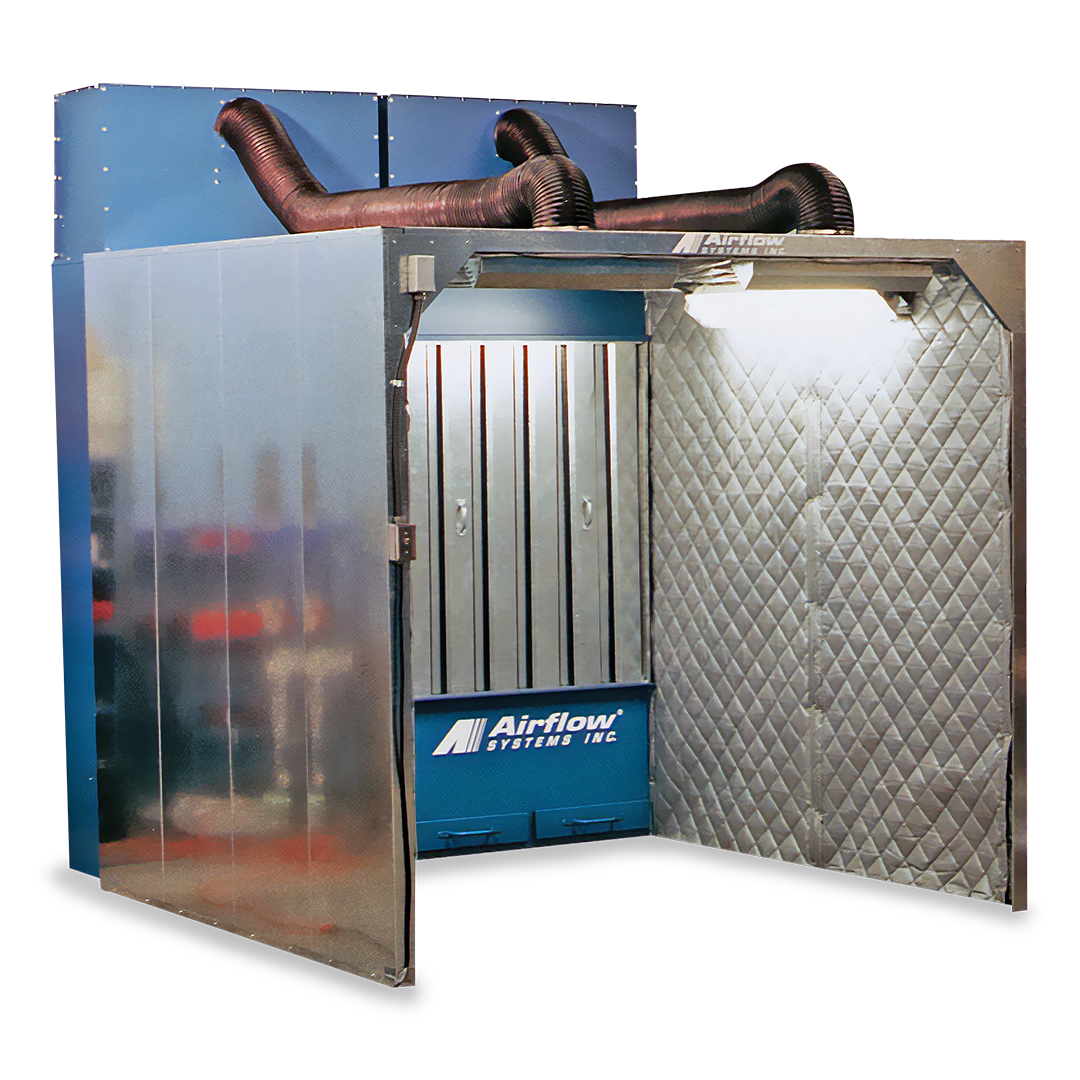

Dust Control & Collection Booth
The Airflow Systems® Dust Control Booth™ provide a self-contained work environment, removing airborne contaminants from worker breathing zones and preventing pollutants from migrating into other areas of the facility. Constructed of galvanized 16 gauge steel the Dust Control Booth™ easily integrate into industrial environments.
Features & Benefits
-
Modular, Expandable: Modules can be easily added as your dust collection needs grow.
-
Self-contained System: Eliminates costly ductwork and the need for a separate dust collection system; units can be configured in multiple arrangements depending on collection and filtration requirements.
-
Full 8-ft. Working Height: Provides large, comfortable working environment for optimum productivity.
-
Double-Insulated Sound Panels: Prevents noise from disrupting other plant operations, reduces worker fatigue.
-
Dust-Resistant Light Fixtures: Provides optimum visibility, encourages productivity.
-
5 HP Direct-drive Blower: Improves collection efficiency, increases reliability.
-
High Efficiency Filter Media: Compact, high-density cartridge filter provides maximum effectiveness; filter changes easily without tools.
-
Industry’s Largest Inlet Grille Area: Keeps contaminants away from workers’ breathing zone; diffuser design reduces air velocity, reducing operating costs and premature filter loading.
-
Large-volume Dust Drawers: Provides for high-volume collection, extends maintenance cycles.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
-
Auto-Clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off.
-
Regulator
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Custom Cartridge Media: For specific applications.
-
After-Filters: 99.97% HEPA, 95% DOP, and odor-control modules.
-
Welding Package Kit: Includes special cartridges and non-reflective inlet.
-
Regain Air Design: Unique push/pull air flow pattern increases collection efficiency.
Specifications
-
Construction: 16 ga. powder coated steel cabinet, double insulated steel panels
-
Blower Pkg (HP): 5.0 (per unit)
-
Noise Level (dBA): 79
-
Electrical: 5.0 HP - 208/230/460/3/60, 13-12/6 amps, std.;
-
Nominal Air Flow (CFM): DCB-1: 4500, DCB-2: 9000, DCB-3: 13,500, DCB-4: 18,000, DCB-5: 22,500, DCB-6: 27,000
-
Weight (lbs.): Consult factory
-
Electrical: 5.0 HP - 208/230/460/3/60, 13-12/6 amps, std.
Dimensions
-
Height: 8.00' std / 10ft. opt
-
Depth: 8.00' std / Increased depths , opt., Consult factory
-
Width: Optional, Consult factory
