TH-280H



TH-280H

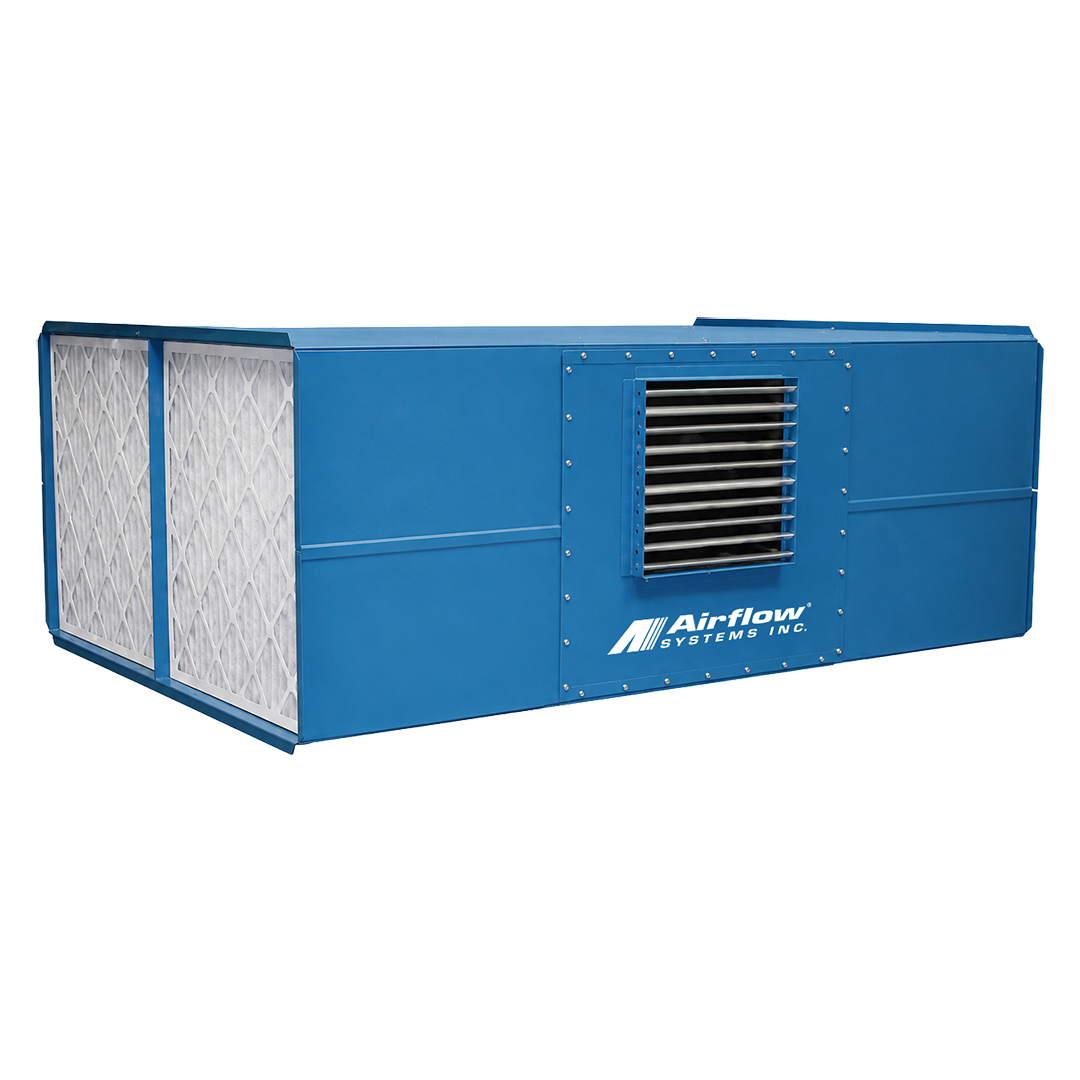

The Airflow Systems TH-280H high-efficiency air filtration system features 2 stage filtration. The TH-280H collects smoke, dust, odors, and other airborne pollutants in industrial and commercial environments. The TH-280H is a complete, packaged system to achieve efficient and economical clean air in your place of business. One, or several TH-280H units continuously recirculate and clean the air resulting in dramatic reductions of bothersome smoke, dust and odor in your facility. The non-electrostatic design of these air cleaners eliminates the problem of snapping and popping common with old-fashioned electrostatic models. Disposable pre-filters, along with four primary bag filters combine to provide filtration efficiency at noise levels as low as 74 dBa.

Get Quote
specs

Features & Benefits

  • 16 gauge, zinc-coated, steel cabinet: Chemical- and oil- resistant 2-part finish provides improved performance and cleanability relative to plastic-panel designs.

  • Formed-steel cabinet construction: Eliminates seam ripples and gaps; improves operating efficiency.

  • O-frame filter mounting system: Eliminates contaminant bypass of filters; improves filter collection efficiency.

  • Industrial-service blower: Efficiently manages repeating air cycles of collection, filtration, and discharge of clean, cool air.

  • Multiple system configurations: Application-specific system design enables; various mounting options to meet facility requirements.

Options

  • Pressure Gauge Kit: Indicates when filters require cleaning.

  • Craddle-style mounting kit: Simplifies ceiling-mount installation & access.

  • External, heavy-duty silencer: Reduces already quiet operation to 74 dBA at 3 HP.

  • Easy-clean multi-pocket bag filters: Provide MERV 14 efficiency; easy cleaning.

Specifications

  • Construction: 16 ga., formed steel, zinc-coated cabinet.

  • Blower Pkg (HP): 3.0, 5.0

  • Noise Level (dBA): 74, 3.0 HP with silencer, 77, 5.0 HP with silencer

  • Electrical: 3.0 HP: 208-230/460/3/60, 8.6/4.3 amps
    5.0 HP: 208-230/460/3/60, 14.0-13.2/6.6 amps

  • Weight (lbs.): 325

Dimensions

  • Width: 50.00"

  • Height: 24.00"

  • Length: 72.00"
