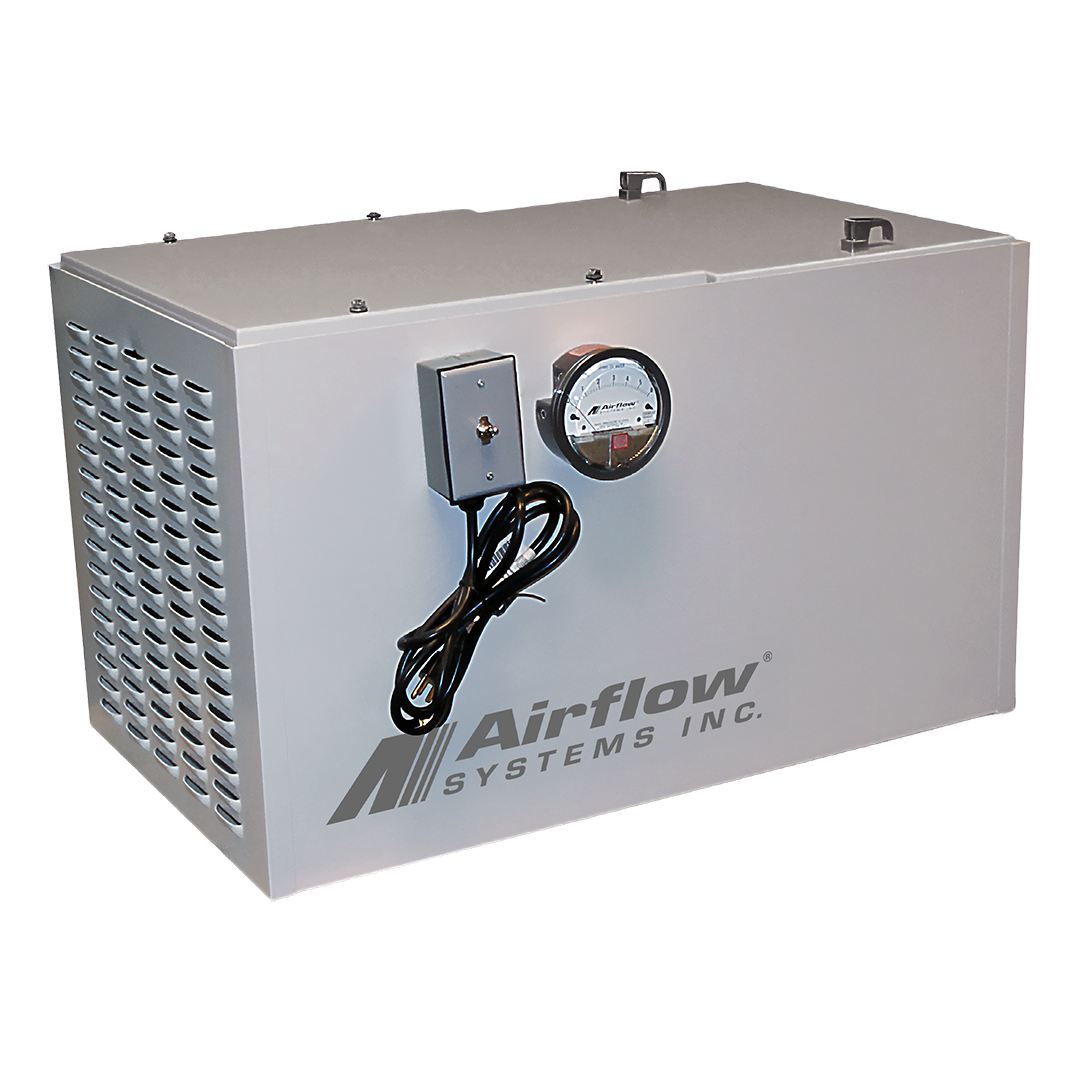

MistPak MPH5 Oil Mist Collector
The MPH5 oil mist collector delivers reliable, high-efficiency oil mist control for demanding machine tool applications. Featuring the MistPlus® II filtration system, it captures up to 95% of 1–4 micron mist droplets while extending filter life and reducing maintenance. With a sealed steel cabinet, compact machine-top design, energy-efficient blower, and continuous liquid drainage, the MPH5 provides dependable performance, lower operating costs, and long-term durability.
Features & Benefits
-
95% Collection Efficiency at 1 to 4 Microns: Designed specifically for oil mist, the Airflow Systems, Inc.® MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
-
MERV 14 Collection Efficiency: MERV 14 rated after-filter provides an additional contaminant barrier. Collection efficiency is increased; filter life is extended.
-
Sealed Cabinet Construction: 18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
-
Lever locking Filter Placement System: Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance. Top access door speeds filter maintenance.
-
Low-profile Cabinet Design: Machine-top orientation enables installation directly above the machine tool-even in low ceiling applications; saves floor space.
-
Superior Liquid Drainage: 8-inch bottom inlet allows for 24-hour, 7-day operation with no need for manual handling of collected liquids.
-
Extended Filter Life, Reduced Maintenance: MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
-
Backward-Inclined Blower: Energy-efficient; superior air flow, low horsepower requirement, higher static pressure operation; acoustically-lined blower cabinet.
Options
-
Pressure Gauge Kit: Monitors air pressure at inlet for reduced static pressure; indicates need for filter cleaning, ensures optimum energy efficiency.
-
Side Panel Inlet: Adaptable to virtually any facility or equipment configuration.
-
High-efficiency After Filters: Including: 99.97% HEPA, and MERV 14 rated, rigid-style, washable cartridge filters.
-
Ceiling-hung Mounting Kit: Easily suspend unit above machine tools where machine-top mounting is unavailable.
-
10-inch Lift Kit: Provides clearance for inlet ducting; simplifies access for maintenance operations.
Specifications
-
Construction: 18 gauge, welded steel cabinet; powder coated finish.
-
Blower Pkgs (HP): 1/2 HP Motorized Backward Incline impeller
-
Noise Level (dBA): 71 dBa (with after-filters)
-
Electrical: 1/2 HP, 115/1/60, 7.2 amps (std); 1/2 HP, 208-230/460/3/60, 2.6-2/1 amps
-
Nominal Air Flow (CFM): 500
