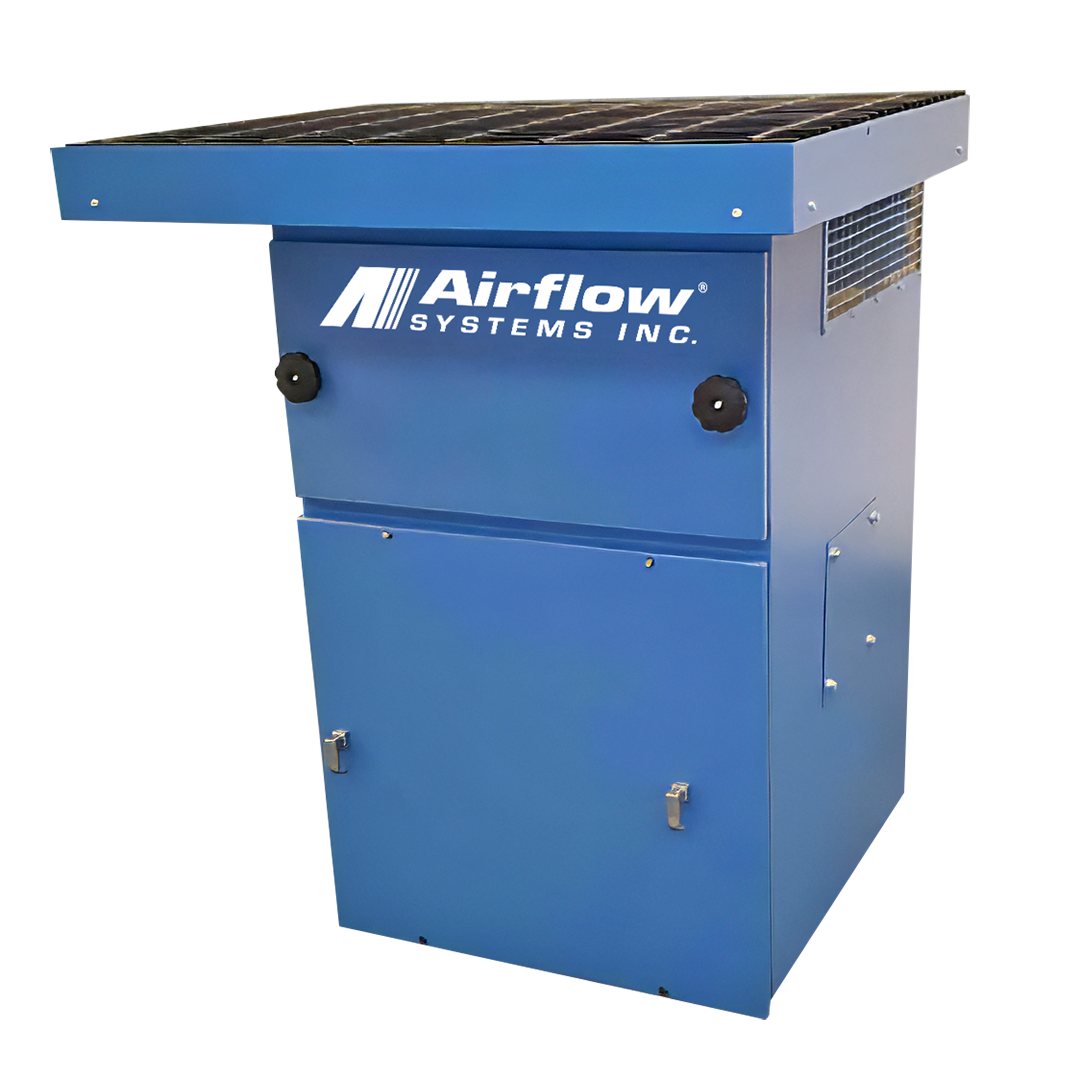

DT-800



DT-800

Construction : 16 gauge steel cabinet finished with a powder coat finish. Includes locking filter mounting system , removable access doors to filters, top mounted grinding table with a heavy duty 300PSFrated steel grate (max table load = 550lbs.) Work surface is 25"deep X 32"wide at 40" height, with optional aluminum, vinyl coat and fiberglass grates . Provides 144 fpm downdraft velocity with a removable internal dust tray. Comes standard with 2" aluminum mesh pre-filter, and 150 sq. ft. cartridge filter. Options include: Internal HEPA and AD module filters, and Auto-Clean Vibra Pulse cleaning system.
Weight : 250lbs.
Airflow : 800 CFM with standard direct drive 1.5 HP TEFC motor.
Noise : 70 dBA

Get Quote
specs

Features & Benefits

  • Integral collection area and work surface: Draws contaminants away from workers’ breathing zone without hindering movement; easily moved to any location in facility.

  • Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.

  • Non-electrostatic operation: High reliability, low maintenance.

  • Compressed filter mounting: Eliminates contaminant bypass of filters.

  • Low profile cabinet Easy access speeds filter changeout and maintenance.

  • Dust Drawer: Easily remove external dust drawer with positive level lock.

Options

  • Pressure Gauge Kit: Indicates when filters require cleaning.

  • Regulator

  • Custom Cartridge Media: For specific applications.

  • After-Filters: 99.97% HEPA, 95%, and odor-control modules.

  • Side Shields: Improves collection efficiency; eliminates contaminant migration.

  • Enclosures and Lighting: Enhances work area; encourages productivity.

  • Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.

Specifications

  • Construction: 12/14/16 ga. welded steel, powder coated cabinet

  • Blower Pkgs (HP): 1.5

  • Noise Level (dBA): 70

  • Electrical: 1.5 HP - 115/230/1/60, 15/7.5 amps, std.;

Dimensions

  • Width: 35.50”

  • Height: 40.25”

  • Depth: 33.00”

  • Table Size: Size: 32.00" W x 25.00" D
