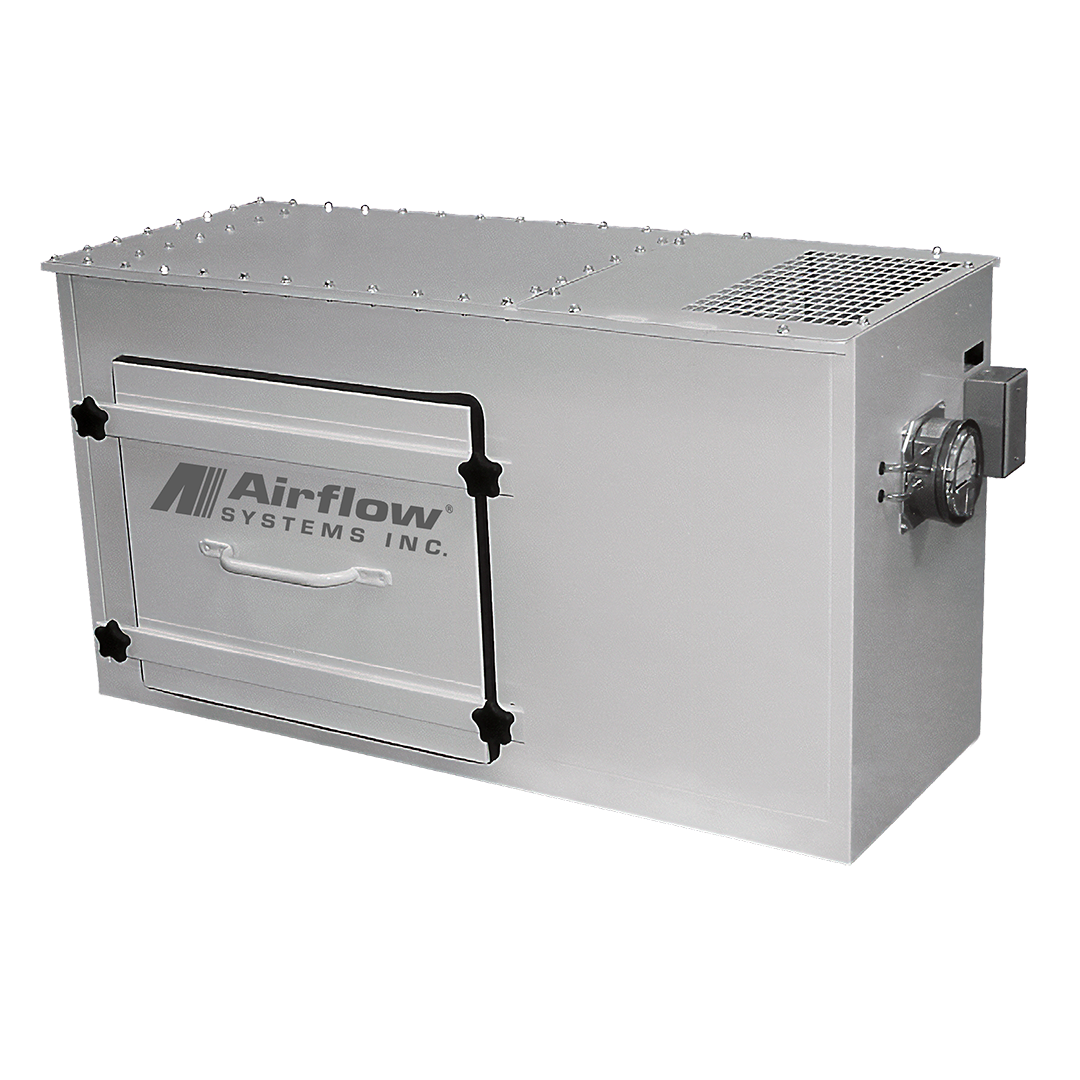

MistPak MPH8 Oil Mist Collector
The MPH8 oil mist collector is a high-performance, low-profile solution engineered for efficient removal of oil mist in demanding machining environments. Featuring a sealed steel cabinet, energy efficient direct-drive blower, and the MistPlus® II filtration system, the MPH8 delivers up to 95% collection efficiency for 1–4 micron oil mist while promoting superior liquid drainage and extended filter life. Its compact horizontal design and maintenance friendly features make it ideal for continuous operation directly above machine tools, even in low-ceiling applications.
Features & Benefits
-
95% Collection Efficiency at 1 to 4 Microns: Designed specifically for oil mist, the Airflow Systems, Inc.® MistPlus® II filter provides up to 95% filtration efficiency of 1 to 4 micron mist droplets. The proprietary, V-shaped filter design aids in drainage of collected mist; extending filter life.
-
Sealed Cabinet Construction: 18 gauge steel, seam-sealed cabinet eliminates contaminant escape common with stitch-welded or bolt-on panel designs.
-
Lever locking Filter Placement System: Ensures quick and accurate filter replacement; eliminates contaminant bypass of filters, reduces equipment and facility maintenance.
-
Low-profile Cabinet Design: Horizontal orientation allows for installation directly above the machine tool-even in low ceiling applications; saves floor space.
-
Superior Liquid Drainage: 10-inch bottom inlet and 2-inch deep sump enable high-volume, 24-hour, 7-day operation; no manual handling of liquids.
-
Extended Filter Life, Reduced Maintenance: MistPlus® II filter design reduces dirt loading and filter maintenance; extending filter life up to two years.
-
Direct-Drive Blower: Energy-efficient; superior air flow and higher static pressure operation; no belts or pulleys to replace, acoustic-lined cabinet.
Options
-
Pressure Gauge Kit: Monitors air pressure at inlet for reduced static pressure; indicates need for filter cleaning, ensures optimum energy efficiency.
-
High-efficiency and Application-specific After Filters: Including: 99.97% HEPA, 95% DOP, external AD odor control, activated charcoal, and Kmn04 filtration.
-
Drain Loop Kit: Simplifies collection and reclamation of captured oil mist while providing drain line air seal.
-
Additional or Non-standard Inlets: Designed to accommodate application-specific requirements; cabinet can be adapted to receive a variety of inlet configurations.
Specifications
-
Construction: 18 gauge, zinc-coated, welded steel cabinet; powder coated finish.
-
Blower Packages (HP): 1.0 std., .75 opt.
-
Noise Level (dBA): 75
-
Electrical: 1.0 HP - 115/1/60, 12 amps, std.
.75 HP - 115/208-230/1/60, 9.8/4.9 amps, opt.
.75 HP - 208-230/460/3/60, 2.7-2.6/1.3 amps, opt.
1.0 HP - 208-230/460/3/60, 3.7-3.6/1.8 amps opt. -
Nominal Air Flow (CFM): 800
-
Weight (lbs.): 170
