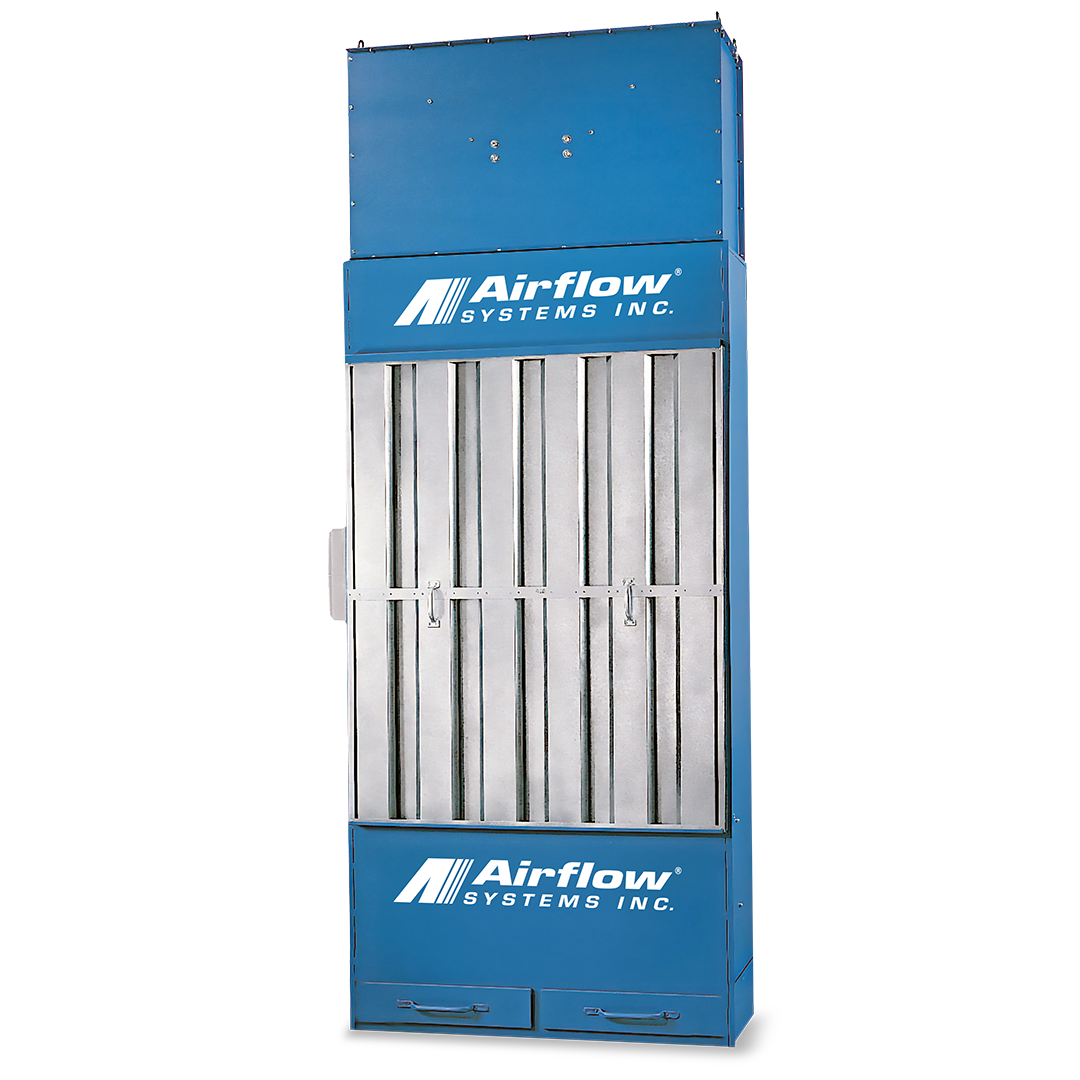

Power Booth: Modular Dust Control Booth

Features & Benefits

• Self-contained system: Eliminates costly ductwork and the need for a separate dust collection system.

• 5 HP direct-drive blower: Improves collection efficiency, increases reliability.

• High efficiency filter media: Compact, high-density cartridge filter provides maximum effectiveness; filter changes easily without tools.

• Industry’s largest inlet grille area: Keeps contaminants away from workers’ breathing zone; diffuser design reduces air velocity, reducing operating costs and premature filter loading.

• Large-volume dust drawer: Provides for high-volume collection, extends maintenance cycles.

• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.

• Auto-Clean off-line filter cleaning: Automatically cleans filters when unit is shut off.
  Built in damper to prevent dust escape during cleaning.

Options

• Pressure Gauge Kit: Indicates when filters require cleaning.

• Cartridge Media: For specific applications.

• After-Filters: 99.97% HEPA, 95%, and odor-control modules.

• Welding Package Kit: Includes special cartridges and non-reflective inlet.

• 12-in. Side Shields Optimum depth for direct contaminant intake and increased collection efficiency.

• Factory-Installed Casters: Provides portability, increases system versatility.

• Casters: Improves maneuvability and productivity.

• Manual Vibra-Pulse® Filter Cleaning Replaces automatic cleaning systems.

Specifications

• Construction: 16 ga. steel cabinet, powder coated

• Blower Pkg (HP): 5.0

• Noise Level (dBA): 77

• Electrical: 5.0 HP - 208/230/460/3/60, 13-12/6 amps, std

• Nominal Airflow (cfm): 4500, std.

Dimensions

• Width: 48.00”

• Height: 122.00”

• Depth: 24.00”
