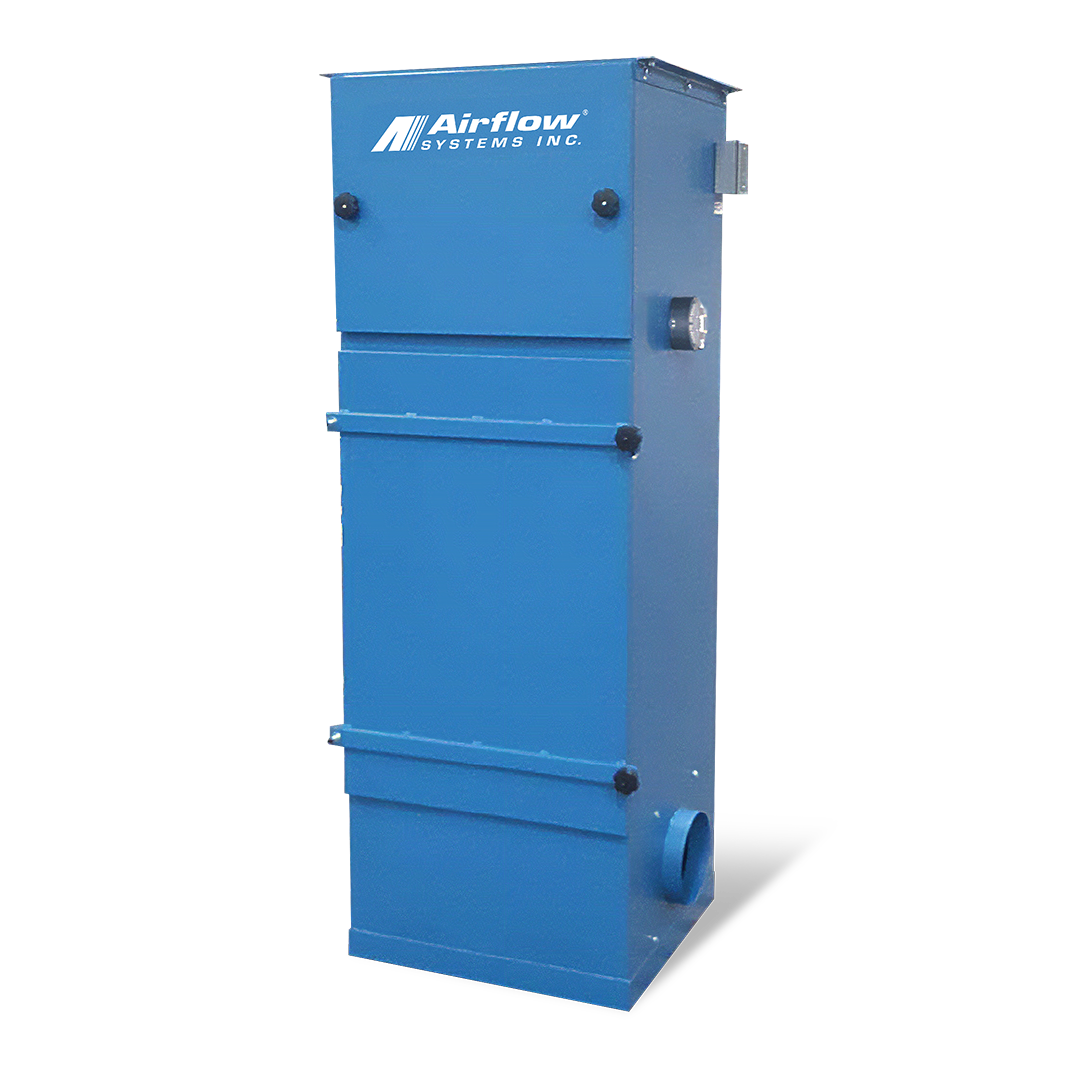

2400 VOM Oil Mist Collector
VOM-Series vertical mist collectors provide high efficiency 4- or 5-stage filtration that handles smoke and dust as well as mists, water soluble coolants as well as petroleum-based fluids. The vertical configuration can be placed directly atop a machine, hung from the ceiling, or floor mounted. With 1200 to 2400 CFM air flow, VOM collectors can easily handle several moderate to large machining stations.
Features & Benefits
-
High capacity source capture: Simplifies OSHA compliance.
-
Direct-drive blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
-
Non-electrostatic operation: High reliability, low maintenance.
-
Ultra-Seal® filter mounting: Eliminates contaminant bypass of filters.
-
Vertical design with small footprint: Eases installation, aids draining.
Options
-
Silencer: Reduces noise by 6 dBA or more.
-
Chevron® Mist Eliminator: Effectively removes moisture; improves filtration effectiveness and extends filter life.
-
HEPA After-Filter Module: Includes 95% efficiency multi-pocket filter, followed by 99.97% DOP efficiency HEPA filter.
-
DOP/Heavy Smoke Filter: Provides 95% efficiency.
Specifications
-
Construction: 16 ga. steel, powder coated cabinet
-
Noise Level (dBA): 1.5 HP, 75; 3.0 HP, 79
-
Electrical: 1.5 HP - 208-230/460/3/60, 5/2.5 amps; 1.5 HP - 115/1/60, 13.2/6.6 amps; 3.0 HP - 208-230/460/3/60, 9.2-8/4 amps
-
Nominal CFM: 2400
Dimensions
-
Width: 24.00”
-
Height: 75.00”
-
Depth: 24.00”
