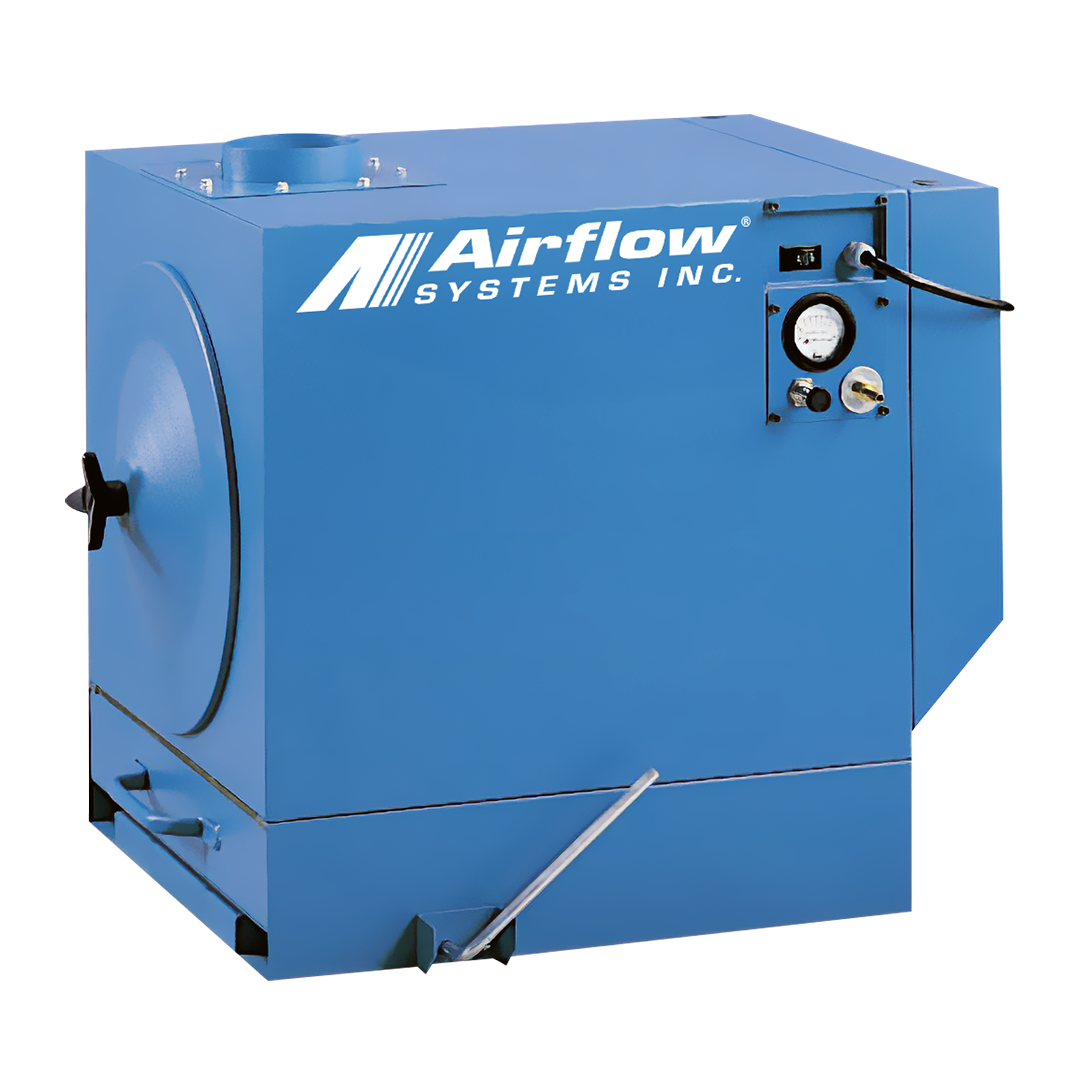

DCH-1 Cartridge Filter Dust Collector
The DCH-1 dust collection systems serve as the air flow and filtration source for an entire collection system. DCH-1 units draw dust, smoke, and other dry pollutants through their cartridge filtration system to clean up to 900 CFM of air. Maintenance cycles are extended with the Vibra-Pulse® filter cleaning system, which cleans filters 4-times cleaner than reverse pulse systems.
Features & Benefits
-
Complete, self-contained unit: Economical; immediately functional.
-
Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
-
Non-electrostatic operation: High reliability, low maintenance.
-
Compressed filter mounting: Eliminates contaminant bypass of filters.
-
Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
-
Low profile cabinet: Easy access speeds filter changeout and maintenance.
-
Dust Drawer: Easily remove external dust drawer with positive lever lock.
Options
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Automatic Filter Cleaning: Vibra-Pulse® system cleans automatically when unit is shut off.
-
HEPA High Efficiency After-Filter: Provides 99.97% filtration efficiency.
-
Adsorption Module: Charcoal after-filter removes gases and odors.
-
Custom Cartridge Media: For specific applications.
-
Hopper with Floor Stand: 10 gallon container.
-
Compressed Air Regulator
-
Casters: 5" casters and 8" wheels for portability.
Specifications
-
Construction: 12/14/16 ga. welded steel, powder coated cabinet
-
Blower Pkgs (HP): 1.0, 1.5
-
Noise Level (dBA): 71/74
-
Nominal Air Flow (CFM): 800 / 900 / 550-650 w/ HEPA
-
Electrical: 1.0 HP - 115/1/60, 12 amps, std.; 1.5 HP - 115/230/1/60, 15/7.5 amps, opt.; 1.5 HP - 208-230/460/3/60, 4.9-4.6/2.3; amps, opt.
Dimensions
-
Width: 26.00”
-
Height: 28.00” (54.25" with Hopper)
-
Depth: 34.25”
