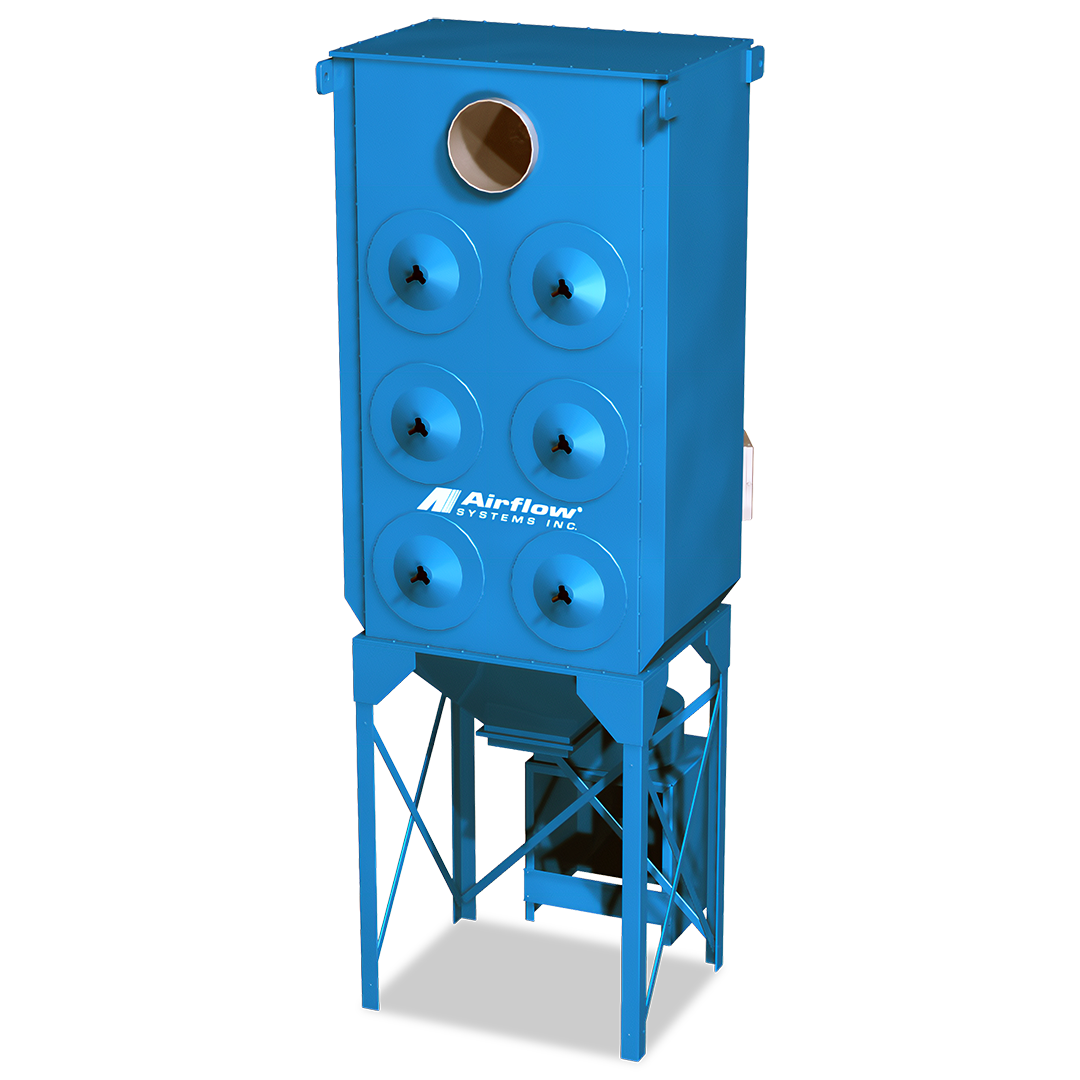

DC-18 High Capacity Dust Collector

Features & Benefits

• Complete, self-contained unit: Economical; immediately functional.

• Direct-Drive Blowers: Higher static pressure, longer filter life and greater reliability; no belts or pulleys to replace.

• Non-electrostatic operation: High reliability, low maintenance.

• Pressure Gauge Kit:Indicates when filters require cleaning.

• Compressed filter mounting: Eliminates contaminant bypass of filters.

• Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.

• Compressed Air Regulator

• Hopper with Floor Stand: For 55-gallon drum.

• Auto-clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off.

Options

• HEPA High Efficiency After-Filter: Provides 99.97% filtration efficiency.

• Adsorption Module: Charcoal after-filter removes gases and odors.

• Custom Cartridge Media: For specific applications.

• Hopper with Short Floor Stand: For 20-gallon drum.

• Block-off Cleaning: Vibra-Pulse® system cleans while unit is in operation

Specifications

• Construction: 12 ga. steel cabinet, powder coated

• Blower Pkgs (HP): 5.0, 7.5, 10

• Noise Level (dBA): 84/75 with silencer (5.0 HP, Backward Incline);84/75 with silencer (7.5 HP, Backward Incline); 89/78 with silencer (10.0 HP, Backward Incline)

• Nominal Air Flow (CFM): 3550 - 6800

• Electrical: 5.0 HP - 208-230/460/3/60, 12/6 amps, std.; 7.5 HP - 208-230/460/3/60, 17.2/8.6 amps, opt.; 10 HP - 208-230/460/3/60, 24/12 amps, opt.; 10 HP - 208-230/460/575/3/60, 24/12/9.6 amps, opt.

Dimensions

• Width: 55.00"

• Height: 158.00"

• Depth: 58.00"
