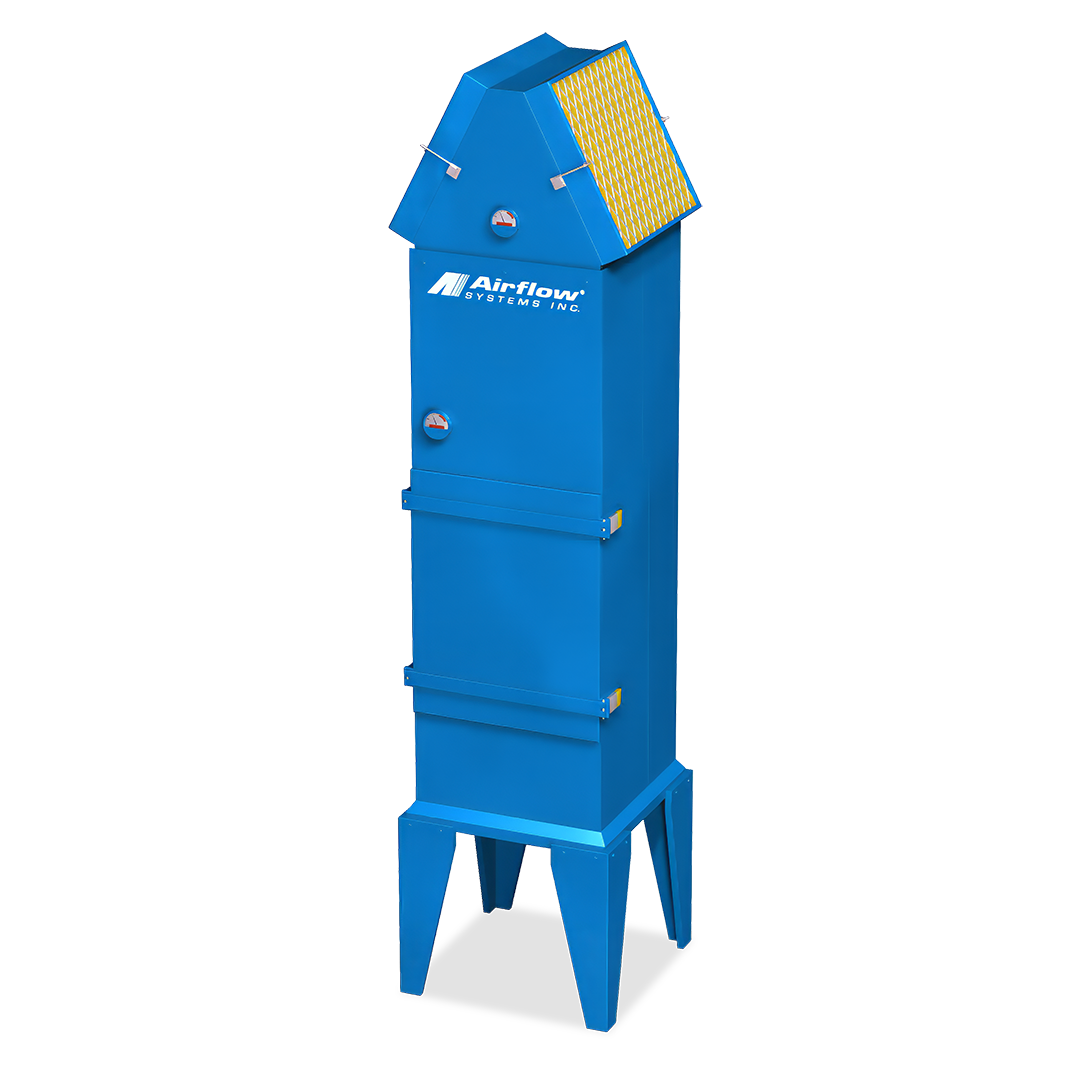

Pro 2 Oil Mist Collector
The Pro 2 mist collector delivers high-efficiency mist filtration in a compact, space-saving design for industrial applications. Its MistPlus® II Containment Management System provides 99.97% ultra-high-efficiency filtration, supported by a washable primary filter with a 2-year filter life guarantee to reduce maintenance costs. Dual extended-life HEPA after-filters, lever-locking filter mounts, and continuous draining help maximize filtration performance and prevent contaminant bypass, while the pressure gauge kit makes filter maintenance simple and predictable.
Features & Benefits
-
Exclusive MistPlus®II Containment Management System: 99.97% ultra-high efficiency filtration. Washable filter reduces maintenance costs, extends filter life. 2-year filter life guarantee.
-
Pressure Gauge Kit:Indicates when filters require cleaning.
-
IEC-Approved Electrical Starter: 3-phase only
-
Lever locking Filter Mounting: Eliminates contaminant bypass of filters.
-
Small Footprint: Compact cabinet requires minimal floor space that eases machine installation.
-
Continuous Draining: Provides for longer filter life.
-
After-Filters:(2) 4 inch 99.97% extended life HEPA filters.
Options
-
Pre-Filters: 2 inch polyester.
-
Drain Loop Kit: Simplifies collection and reclamation on captured oil mist while providing drain line air seal.
-
24 Inch Floor Stand: Stabilizes floor-mounted units; eases unit and facility maintenance.
Specifications
-
Construction: 16 ga. zinc coated welded steel, powder coated cabinet
-
Blower Pkg (HP): 2
-
Noise Level (dBA): 78
-
Electrical: 2 HP - 115/230/1/60, 17.0/8.5 amps, opt.; 2 HP - 208-230/460/3/60, 4.9-4.6/2.3 amps, std.
-
Nominal CFM: 1300
Dimensions
-
Width: 28.00”
-
Height: 123.00” (with optional stand)
-
Depth: 28.00”
