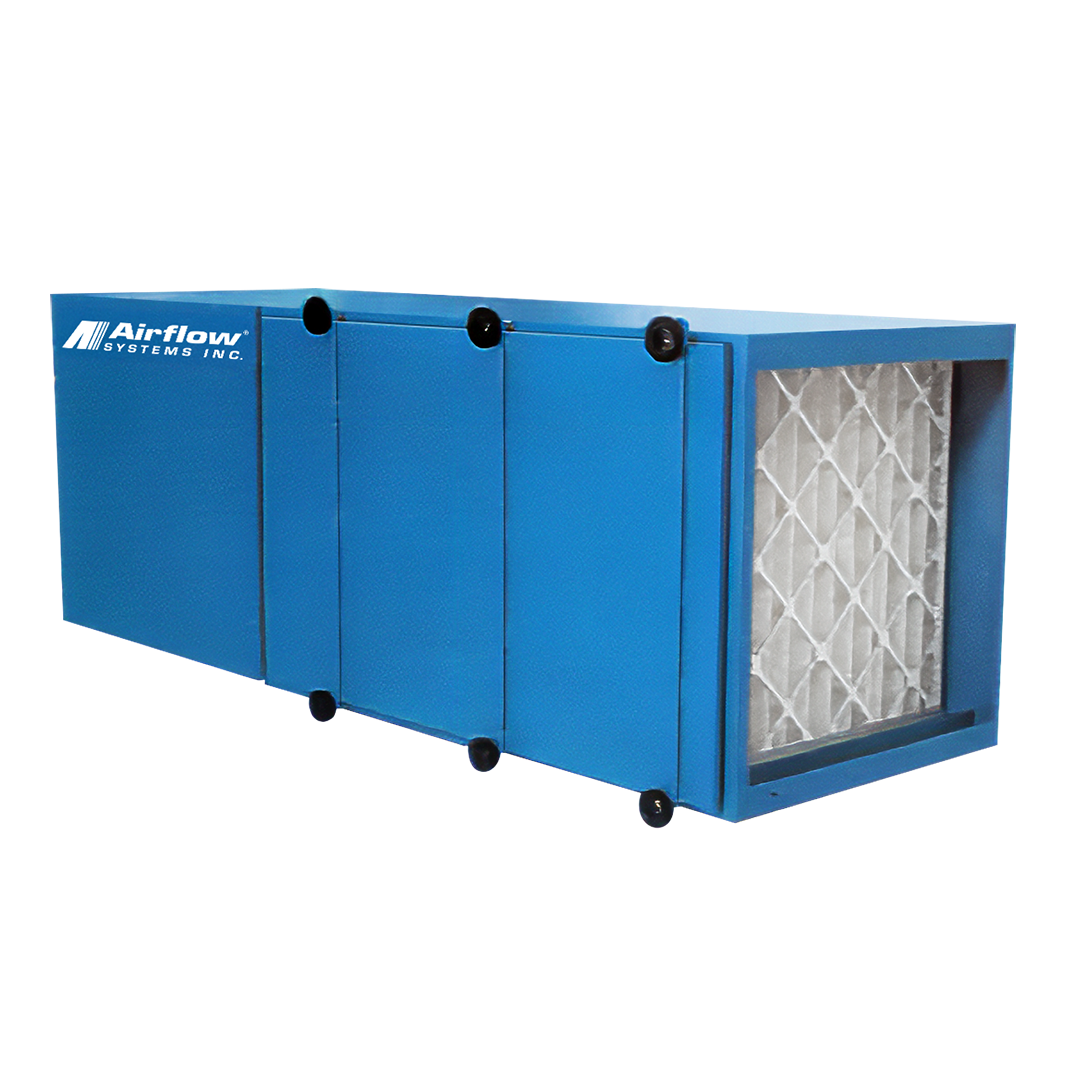

F-120 Free Hanging Air Cleaner
The F120 is a high-efficiency air cleaner designed to capture dust, smoke, coolant mist, oil smoke, and other pollutants in industrial plants, shops, schools, and factories. Its proven 2-, 3-, or 4-stage filtration system connects easily to ductwork or pickup hoses for effective at-the-source collection. Optional gas adsorption expands removal to gases as well as particulates. When source capture isn’t practical, the F120 can operate as a free-hanging unit to clean ambient shop air. Washable pre-filters, a primary bag filter, and optional HEPA after-filters deliver up to 99.97% filtration efficiency with noise levels as low as 75 dBA.
Features & Benefits
-
Capacities to 3800 CFM: Handles toughest industrial applications.
-
Non-electrostatic Operation: High reliability, low maintenance.
-
Ultra-Seal® Filter Mounting: Eliminates contaminant bypass of filters.
-
High Efficiency Filter Media: provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
-
Prewired to Junction Box: For fast, easy installation.
Options
-
Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace.
-
Pressure Gauge Kit: Indicates when filters require cleaning.
-
Silencer: Reduces air flow noise for quieter operation.
-
Charcoal Adsorber Modules: Refillable modules control gases and odors.
-
HEPA After-Filter: provides 99.97% DOP efficiency.
-
Inlet Plenum
Specifications
-
Construction: 16 ga. steel cabinet, powder coated
-
Blower Pkg (HP): 2.0 Std., 3HP, BI opt.
-
Noise Level (dBA): 75 (69 with Silencer); 79/75 (3 HP)
-
Electrical: 2.0 HP - 208-230/460/3/60, 6.5/6.2/3.1 amps, std.; 3.0 HP - 208-230/460/3/60, 9.2/8.0/4.0 amps
-
Nominal Air Flow (CFM): 3800
Dimensions
-
Width: 25.00”
-
Height: 26.25”
-
Length: 72.00”
